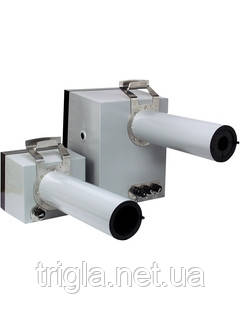

VICOTEC320 air quality measuring device
Ціну уточнюйте
- В наявності
- Код: VICOTEC320 air quality me
- +380 (44) 366-24-23
- +380 (44) 366-26-62
- +380 (97) 950-62-01mob
- +380 (44) 366-24-23
Короткі характеристики
-
Measured variables
Visibility (K-value), NO, NO2, NOx, CO, Temperature
-
Measuring range
K-value: 0 ... 15 km⁻¹ / 0 ... 200 km⁻¹
NO: 0 ... 20 ppm / 0 ... 45 ppm
NO2: 0 ... 1 ppm / 0 ... 5 ppm
CO: 0 ... 100 ppm / 0 ... 300 ppm
Temperature: -25 ... +55 °C / -25 ... +75 °C -
Conformities
ASTRA "Guideline - Ventilation of Road Tunnels" (2008)
RABT 2006
RVS 09.02.22
Сфера застосування
The VICOTEC320 measures very small concentrations of NO2 and NO as well as the visibility and temperature in road tunnels quickly and simultaneously. And all this using industry-proven components – without test gases for zero and reference point. An automated, cyclic adjustment of zero and reference point ensures exact values. The rugged housing even withstands thorough tunnel washing operations without any impairments.
-
Ventilation control and filter monitoring in tunnels
-
Monitoring of air quality in road tunnels
Device properties:
-
Very low detection limits for NO and NO2
-
Automatic function monitoring and self-adjustment
-
Very rugged design in stainless steel
-
Automatic beam alignment between sender/receiver unit and reflector
Переваги
-
Energy and cost savings for ventilation control due to very low zero offset and accurate measurement
-
Low operational costs because no air aspiration of ambient air and no test gases are required
-
Low maintenance requirements due to long maintenance interval (approx. 1 year)
- Ціна: Ціну уточнюйте
