VISIC100SF air quality measuring device/VISIC50SF smoke detector
Ціну уточнюйте
- В наявності
- Код: VISIC100SF air quality me
- +380 (44) 366-24-23
- +380 (44) 366-26-62
- +380 (97) 950-62-01mob
- +380 (44) 366-24-23
Короткі характеристики
-
Measured variables
Visibility (K-value), CO, NO, NO2
-
Measuring range
Visibility (K-value): 0 ... 15 km⁻¹
CO: 0 ... 300 ppm
NO: 0 ... 100 ppm
NO2: 0 ... 5 ppm -
Conformities
ASTRA "Guideline - Ventilation of Road Tunnels" (2008)
RABT 2006
RVS 09.02.22
Сфера застосування

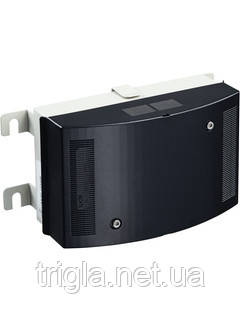

The VISIC100SF tunnel sensor is an all-in-one solution for measuring visibility, CO, NO, and NO2 concentrations. The VISIC100SF is easy to mount, operate, and maintain. There is no need for alignment or parameter setting. With its IP6K9K enclosure rating, the VISIC100SF is able to withstand the harsh ambient conditions inside the tunnel, also tunnel washing operations. During the design phase, particular importance was placed on ensuring reliable operation and long maintenance intervals.
-
Ventilation control in tunnels
-
Measurement of visibility when the tunnel portal is shrouded in fog
-
Anywhere where air quality has to be measured and improved
Device properties:
-
Visibility measurement according to the scattered light principle
-
CO and NO concentration measuring in accordance with EN 50545
-
Software developed in accordance with EN 61508 (SIL1)
-
IP 6K9K enclosure rating thanks to a rugged stainless-steel housing
-
Fog compensation through integrated heating (option)
Переваги
-
One sensor for three measuring components
-
High levels of reliability and operational safety
-
No need for protective measures during tunnel cleaning
-
Flexible connection options, easy to extend and integrate into existing networks
-
Visibility measurement can be easily verified with a checking tool
-
Low level of effort due to simple mounting and quick commissioning
| Основні | |
|---|---|
| Виробник | Endress+Hauser |
| Країна виробник | Німеччина |
- Ціна: Ціну уточнюйте
