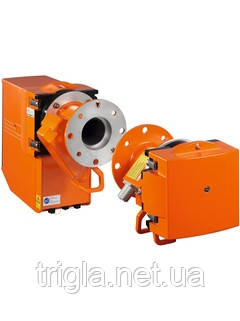

GM35 process gas analyzer
Ціну уточнюйте
- В наявності
- Код: GM35 process gas analyzer
- +380 (44) 366-24-23
- +380 (44) 366-26-62
- +380 (97) 950-62-01mob
- +380 (44) 366-24-23
Короткі характеристики
-
Measured variables
CO, CO2, H2O
-
Device version
Cross-duct version
Measuring probe version -
Ambient temperature range
-20 °C ... +55 °C
Temperature change maximum ±10 °C/h
Сфера застосування
Simultaneous or as individual measurement: the GM35 gas analyzer measures CO2, H2O and CO, as well temperature and pressure – and it does this reliably, quickly, and economically. As an in-situ gas analyzer, the GM35 detects these gas components directly in the gas stream without gas sampling. Reliability, accuracy, and short response time of the GM35 offer a key advantage for efficient control loops in CO and CO2-generating processes.
-
Emission monitoring according to EN 14181, e. g., in power or cement plants
-
Control of the water injection upstream of the electrostatic precipitator
Device properties:
-
Dynamic humidity correction
-
Fast in-situ measurement directly in the process
-
Simultaneous determination of up to three gas components, temperature, and pressure
-
No gas sampling and conditioning
-
Gas testable version of measuring probe available
-
Integrated self-test and control functions
Переваги
-
Dynamic moisture measurement directly within the process
-
Provision of measured moisture reference values
-
Nearly uncompromised measured values thanks to in-situ measurement
-
Fast or transient process deviations are measurable
-
Representative measurement by selecting a suitable measuring probe or cross-duct type
- Ціна: Ціну уточнюйте
