FWE200DH particle measuring device
Ціну уточнюйте
- В наявності
- Код: FWE200DH particle measuri
- +380 (44) 366-24-23
- +380 (44) 366-26-62
- +380 (97) 950-62-01mob
- +380 (44) 366-24-23
Короткі характеристики
-
Measured variables
Scattered light intensity, dust concentration (after gravimetric comparison measurement)
-
Process temperature
PVDF gas removal probe: ≤ +120 °C
Hastelloy gas removal probe: ≤ +220 °C
Versions for higher temperatures on request -
Certified measuring range
Dust concentration: 0 ... 7.5 mg/m³ / 0 ... 10 mg/m³ / 0 ... 15 mg/m³ / 0 ... 50 mg/m³ / 0 ... 100 mg/m³ / 0 ... 200 mg/m³ / 0 ... 500 mg/m³
Сфера застосування

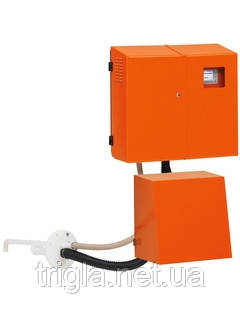

The FWE200DH dust measuring device is designed to continuously measure dust concentrations in wet gases. The gas is extracted via a gas sampling probe and heated above the dew point. Droplets in the gas vaporize, making it impossible for them to falsify the measurement results. The very sensitive scattered light measurement principle enables accurate measurements even at low dust concentrations. The FWE200DH meets the requirements of EN 14181 and EN 15267.
-
Monitoring of wet gas scrubbing facilities
-
Meassurement in very wet exhaust air and in technological processes
-
Measurement in wet gas downstream of desulfurization plants
Device properties:
-
For very low to medium dust concentrations
-
Gas sampling and return combined in one probe
-
Contamination check
-
Automatic monitoring of zero and reference point
-
Integrated system diagnostics for early detection of maintenance requirements
Переваги
-
Reliable and proven dust measurement in wet gases
-
Economic operation due to very few consumable parts and very low installation effort
-
Very low maintenance since no moving parts come into contact with the aggressive gas
-
Very long service life due to intelligent design
| Основні атрибути | |
|---|---|
| Виробник | Endress+Hauser |
