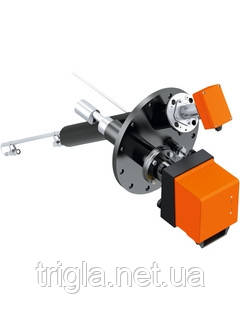

Combiprobe CP100 particle measuring device
Ціну уточнюйте
- В наявності
- Код: Combiprobe CP100 particle
- +380 (44) 366-24-23
- +380 (44) 366-26-62
- +380 (97) 950-62-01mob
- +380 (44) 366-24-23
Короткі характеристики
-
Measured variables
Dust concentration (after gravimetric comparison measurement), gas velocity, gas pressure, gas temperature
-
Process temperature
–20 °C ... +200 °C
-
Process pressure
–70 hPa ... 10 hPa
Сфера застосування
The Combiprobe CP100 is the combination of a DUSTHUNTER SP100 dust measuring device and a FLOWSIC100 PR flow measuring device. The combined probe also features a pressure transmitter and resistance thermometer. The Combiprobe CP100 only requires a single mounting opening in order to measure the dust concentration, volume flow, pressure and temperature. This means that there is considerably less outlay on installation than if the individual components were to be installed separately.
-
Emission monitoring
-
Monitoring of heat treatment and extraction systems
-
Process monitoring within the chemical industry
Device properties:
-
No need for mechanical adjustment
-
Self-testing with the automatic control cycle
-
Simple configuration and operation with easy-to-use software
-
For gas temperatures up to 200 °C
-
For funnels with an internal diameter of 0.7 m and above
Переваги
-
Easy to install complete solution for detecting dust emission and the emission-related benchmarks of volume flow, pressure and temperature
-
Low operating costs due to the measuring devices' long maintenance intervals
-
Durable and reliable components
-
Scattered light dust measuring device and volume flow measuring device that have been performance-tested according to EN 15267
| Основні | |
|---|---|
| Виробник | Endress+Hauser |
| Країна виробник | Німеччина |
- Ціна: Ціну уточнюйте
