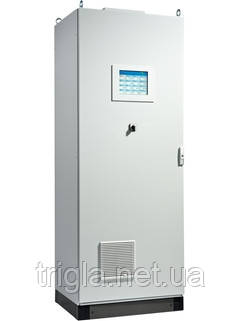

MCS100FT emission monitoring solution
Ціну уточнюйте
- В наявності
- +380 (44) 366-24-23
- +380 (44) 366-26-62
- +380 (97) 950-62-01mob
- +380 (44) 366-24-23
Короткі характеристики
-
Measured variables
CH4, CO, CO2, Corg, HCl, HF, H2O, NH3, NO, NO2, N2O, O2, SO2, NOx, C3H8, C2H6
-
Ambient temperature range
+5 °C ... +35 °C
With cooling device:+5 °C ... +50 °C -
Process temperature
≤ +1,300 °C
Сфера застосування
The FTIR measurement principle enables the simultaneous acquisition of more than 12 measuring components. The MCS100FT FTIR analyzer system with its heated measuring cell made of corrosion-resistant material also enables monitoring of hydrogen fluoride limits as required by legislation. With its reliable measurement technology, easy operation, and low maintenance requirements, the MCS100FT provides a hassle-free solution concept that offers unequaled opportunities.
-
Emission monitoring in waste incineration plants
-
Reliable HF limit value monitoring
-
Monitoring of gaseous emissions in cement or power plants
Device properties:
-
Small suitability-tested HF measuring range: 0 ... 3 mg/m³
-
Automatic spectrum adjustment via AutoVAL for reliable measured values
-
Suitability-tested according to EN15267
-
Remote control and diagnosis via SOPAS ET software
-
Automatic adjustment of the analyzer
-
Automatic backwashing and filter cleaning of the extraction unit
Переваги
-
Reliable HF limit value monitoring
-
Just one analyzer for over 12 measuring components
-
Easy integration into the customer network environment
-
Long 6-month maintenance interval for many measuring components
-
Suitability-tested measurement of greenhouse gases such as N2O, CH4 and CO2
-
Low maintenance effort
- Ціна: Ціну уточнюйте
