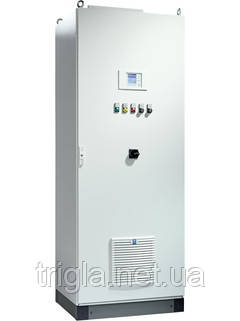

PowerCEMS100 emission monitoring solution
Ціну уточнюйте
- В наявності
- +380 (44) 366-24-23
- +380 (44) 366-26-62
- +380 (97) 950-62-01mob
- +380 (44) 366-24-23
Короткі характеристики
-
Measured variables
CO, NO, NO2, NOx, SO2, CH4, N2O, CO2, O2
-
Ambient temperature range
Indoor: +5 °C ... +40 °C
Can be expanded on the system side if necessary
Indoor with cooling unit: +5 °C ... +50 °C
Can be expanded on the system side if necessary
Outdoor: –20 °C ... +50 °C
Can be expanded on the system side if necessary
Сфера застосування
The innovative PowerCEMS100 system is certified according to European standards EN 15267-1/-3 and EN 14181, and offers future-proof solutions for emission measurement and process applications. This all-in-one system comprises high-quality standard assemblies and components and can be adapted to the application-specific requirements thanks to its modular system design. Retrofitting analyzer modules or gas conditioners is easy and inexpensive.
-
Gas-, brown-coal-, or hard-coal fired power plants
-
Gas turbines as well as combined cycle power plants
-
Emission monitoring for small or medium sized boilers
Device properties:
-
Cold/dry extractive analyzer system certified according to EN 15267 and EN 14181
-
Plug-and-play analyzer module with 24 V power supply
-
Control unit for displaying all measured values and status information on one monitor
-
External sensors can be connected via prepared interfaces
Переваги
-
Future-proof investment, as the system can be adapted easily to meet future needs
-
Easy commissioning and trouble-free on-site approval of the measuring system by the responsible authorities
-
Easy to maintain thanks to a clear separation of the electrical and analyzer components
-
High availability due to easy and quick replacement of modules with CAN bus technology
- Ціна: Ціну уточнюйте
