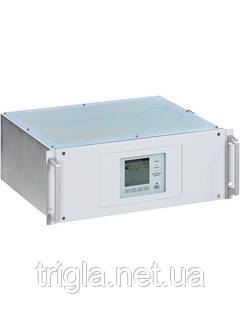

GMS800 FIDOR emission monitoring solution
Ціну уточнюйте
- В наявності
- +380 (44) 366-24-23
- +380 (44) 366-26-62
- +380 (97) 950-62-01mob
- +380 (44) 366-24-23
Короткі характеристики
-
Measured variables
Corg
-
Ambient temperature range
+5 °C ... +40 °C
-
Process pressure
–120 hPa ... 120 hPa
Relative
Сфера застосування
The GMS800 FIDOR extractive gas analyzer is ideally suited for emission measurements according to regulatory requirements. Based on the proven flame ionization detection principle, the GMS800 FIDOR measures total hydrocarbon concentrations in gases at both trace levels and high concentration levels. The different housing makes stand-alone operation and integration into existing systems such as the MCS200HW multi-component analyzer very easy.
-
Monitoring of hydrocarbon emissions in raw gas and clean gas
-
Emissions measurement in thermal, catalytic, and biological exhaust gas cleaning systems
-
Laboratory applications
Device properties:
-
Standard 19” enclosure for easy integration into all industry-typical systems
-
Space-saving wall housing (stand-alone)
-
Nearly maintenance free ejector pump
-
Automatic regulation and compensation of process pressure fluctuations
-
High degree of linearity (≤ 2 %) for very low and high measuring ranges
Переваги
-
Very high availability (99,5%)
-
Convenient remote diagnosis and operation via Ethernet using SOPAS-ET software
-
Replacement of complete assemblies and modules makes repairs easy
-
Hydrogen as fuel gas, expensive helium is not required
-
Low operating costs, e.g., due to low hydrogen consumption
-
The GMS811 FIDOR version, on which the BCU control unit can be separated from the analyzer unit, supports convenient control and monitoring from a central control room
| Основні | |
|---|---|
| Виробник | Typical |
