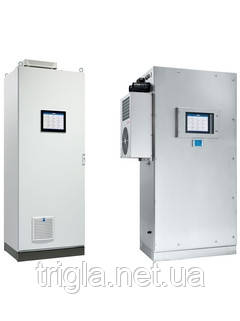

Product picture of the gas analyzer MCS200HW MCS200HW emission monitoring solution
Ціну уточнюйте
- В наявності
- +380 (44) 366-24-23
- +380 (44) 366-26-62
- +380 (97) 950-62-01mob
- +380 (44) 366-24-23
Короткі характеристики
-
Measured variables
CH4, CO, CO2, Corg, HCl, H2O, NH3, NO, NO2, N2O, O2, SO2
-
Ambient temperature range
+5 °C ... +55 °C (with air conditioning unit according to QAL1 certificate)
-
Process temperature
≤ +550 °C
Сфера застосування
The MCS200HW is a analyzer system for continuous monitoring of up to 10 IR measurement components in flue gases. All parts which touch media are heated above the dew point and therefore protected from corrosion. Internal reference point monitoring allows for a quick check of the measured values without test gases. The web display and the task assistant integrated in the software makes operation very easy. MCS200HW Ex allows reliable emission measurement even in explosion-hazardous areas.
-
Emission monitoring for waste incineration plants as well as power plants and plants with co-incineration, e.g. cement plants
-
Measurement of nitrogen oxides in nitric acid plants
Device properties:
-
Measurement of up to 10 IR components plus O2 and TOC
-
Wear-free gas distribution through ejector pumps
-
Reference point monitoring with internal calibration cells
-
Web server for platform-independent device control
-
Use of dry test gases for HCl and NH3 Classification for ATEX Zone 2, IIC T3 gb
Переваги
-
Only one analyzer necessary for simultaneous monitoring of up to 12 gas components
-
Convenient, task-oriented operation
-
Remote access without additional software
-
High availability due to certified internal third-party monitoring (QAL3) without test gases
-
High availability due to certified internal third-party monitoring (QAL3) without test gases
-
Use in explosion-hazardous areas thanks to rugged, pressurized housing
| Основні | |
|---|---|
| Виробник | MCS |
